Bearing Conditions

  Bottom 725x90

Bottom Chord Bearing - Truss sits on a wall, or in a floor truss hanger


 Top 725x90

Top Chord Bearing - Truss hange from the bearing.


Mid Chord 725x90

Mid-Chord Bearing - The bearing is raised between the top and bottom chords.


Multi 725x100

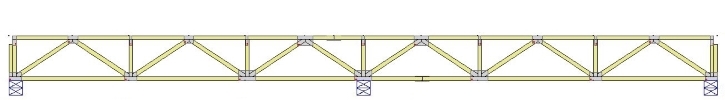

Multiple Bearing - Truss has more than two bearings.


  Mixed 725x100

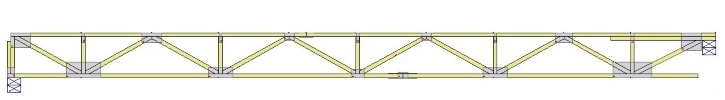

Mixed Bearing - Trusses can have different bearing types on each end.


  Cantilever 725x90

Cantilever Bearing - Trusses can have a cantilever on one or both ends.


Beam Pocket 725x90

Beam Pocket Bearing - Truss contains a pocket for a beam. (the section in RED is cut out in the field)
